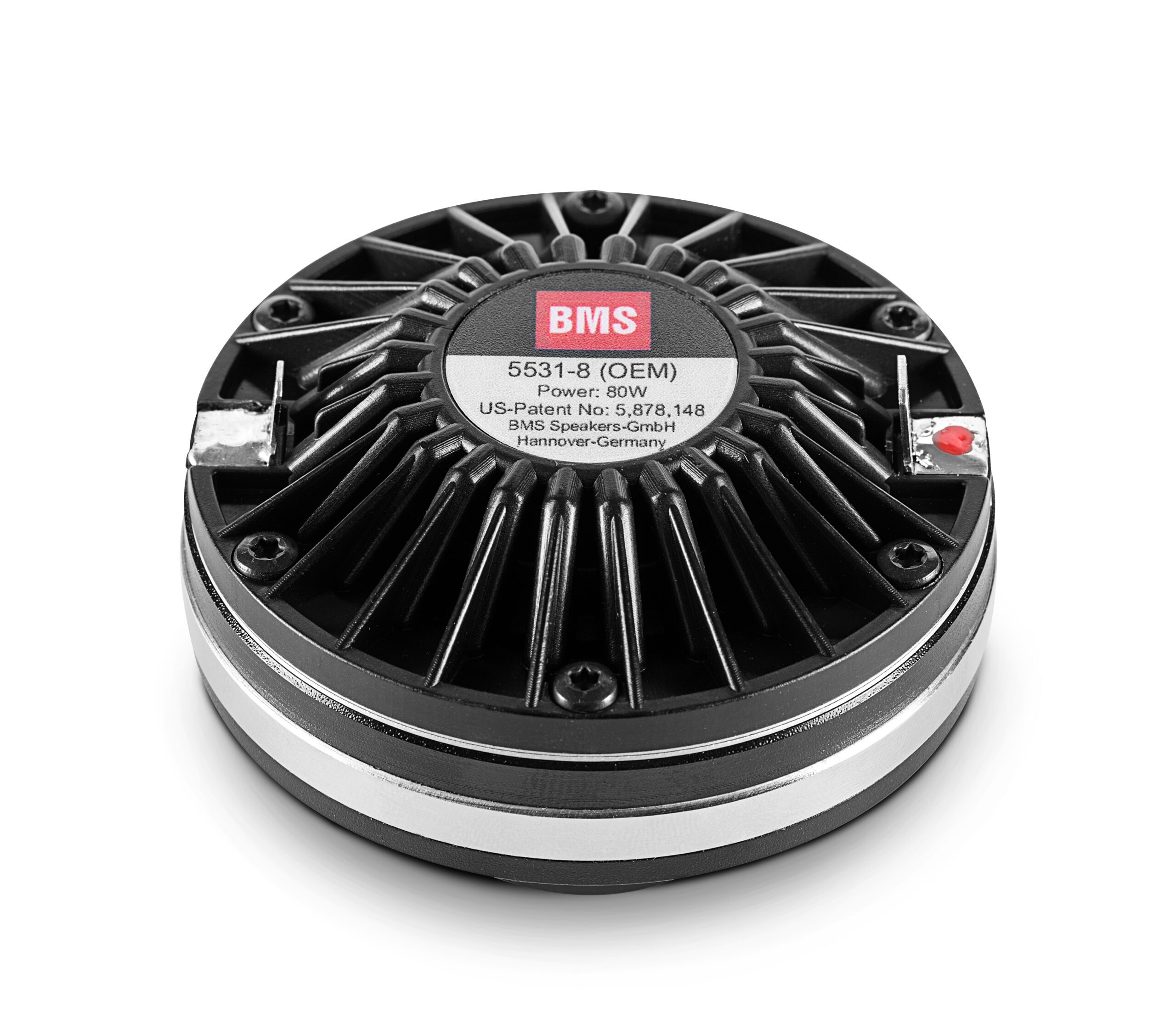

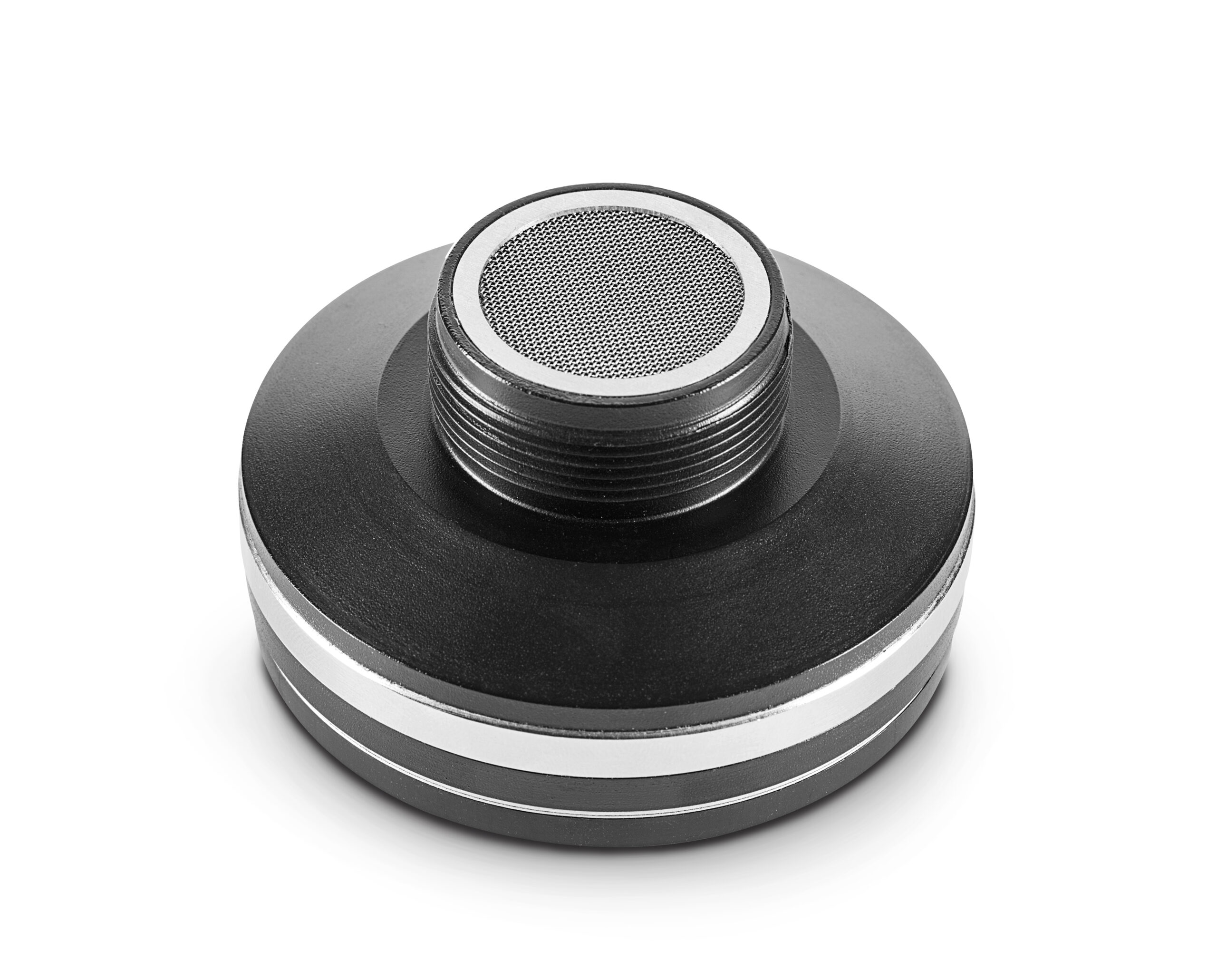

New Generation BMS compression driver
Employing all unique BMS technologies like the ultra-low intermodulation distortion ring diaphragm, very high efficiency and a 44mm sandwich voice coil in an ultra-compact format, the BMS 5531ND sets a new standard in size to output ratio and provides the lowest crossover available at that size.
Great new potential
Loudspeaker system designers now can create modern products with no compromise, while reducing size, weight and cost of the driver components.
Unique solution for line arrays and beam steering systems

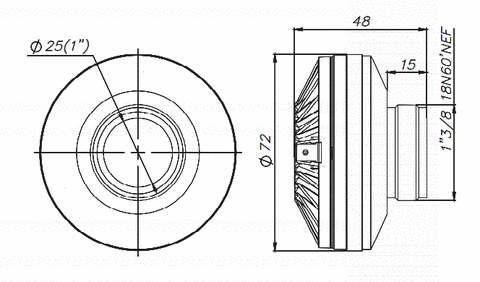

With an outside diameter of only 72mm the BMS 5531ND is a non-compromise solution for high output line arrays when it comes to putting maximum output in minimal height.
When multiple 5531ND drivers are closely mounted, the recommended crossover drops to 850Hz.
Because of its small size the BMS 5531ND is the only solution to create high output beam steering systems with perfect directivity control, low crossover of 850Hz and 72mm acoustical distance between sources.
Designing better point sources
In fact the recommended crossover is one octave lower than other drivers in this category while the maximum output is 4-6dB higher.
This allows to design high output loudspeaker systems with high fidelity, high resolution sound and perfect directivity while reducing size, weight and cost.
Applications:
– High quality point sources
– High output line arrays
– High output beam steering systems
