| Application: | 2-way Transducer | |
| Nominal Impedance: | Ohm | 8/16 |
| Power Handling AES Noise: | W | 500 |
| Sensitivty (1 W / 1 m): | dB | 98 |

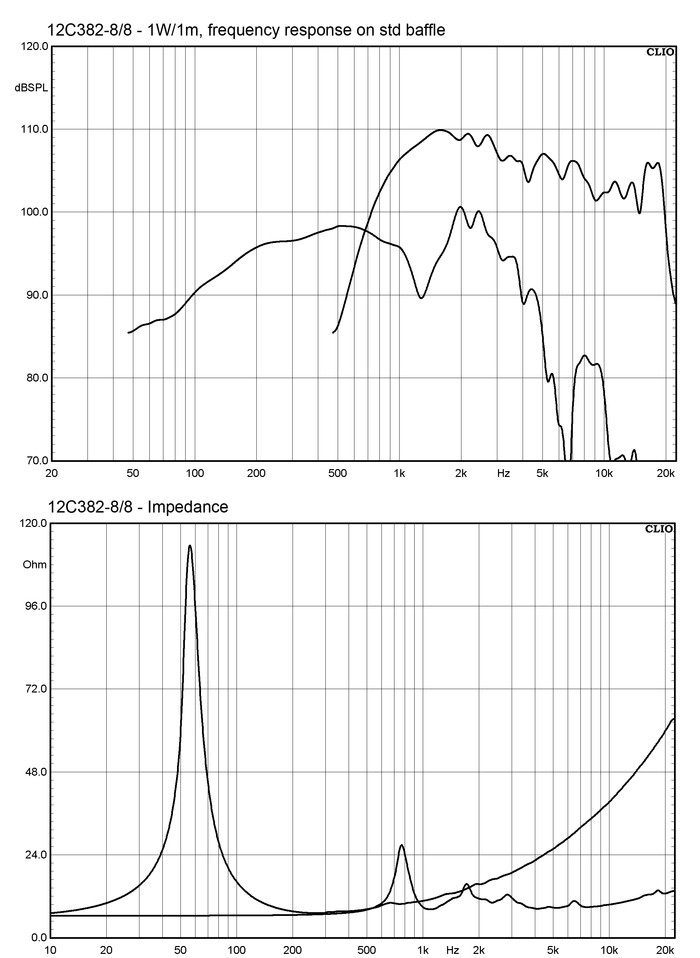

| Frequency response: | Hz | 45 – 20000 |
| Voice Coil Diameter: | mm | 77 (3″) |
| Voice Coil Material: | Cu | |
| Voice Coil winding Depth: | mm | 19 |
| Magnet Gap Depth: | mm | 10 |
| Basket | Cast Aluminum | |
| Effect. Diaphragm Diameter D | mm | 249 |
Recommended reflex enclosure:
35L / 52Hz: BRD = 100mm / 175mm long
| Resonance Frequency: | Fs | Hz | 52 |
| DC Resistance: | Re | Ohm | 5.8 |
| Mechanical Q Factor: | Qms | 5.6 | |
| Electrical Q Factor: | Qes | 0.3 | |
| Total Quality Factor: | Qts | 0.29 | |
| Equivalent Volume: | Vas | L | 57 |
| Moving Mass: | Mms | kg | 0.055 |
| Mechanical Complience: | Cms | mm / N | 0.17 |
| BL Factor: | BL | Tesla m | 18.6 |
| Effective Piston Area: | Sd | m² | 0.0487 |
| Max. linear Excursion: | Xmax | mm | +/- 4.5 |
| Voice Coil Inductance: | Le1k | mH | 0.9 |
| Le10k | mH | 0.55 |
| Nominal Impedance: | Ohm | 8/16 |
| Power Handling AES: | W | 80 |
| Peak Power: | W | 450 |
| Sensitivity (1 W / 1 m): | dB | 110 |
| Frequency Range: | Hz | 700 – 20000 |
| Recommended Crossover: | Hz | 1100 |
| Voice Coil Diameter: | mm | 44.4 (1.75″) |
| Magnet Material: | Ceramic | |
| Fluchs Density | T | 1.8 |
| Voice Coil Material: | Copper Clad Aluminium | |
| (2 layers in- and outside of the VC) | ||
| Voice Coil Former: | Kapton TM | |
| Diaphragm Material: | Polyester |

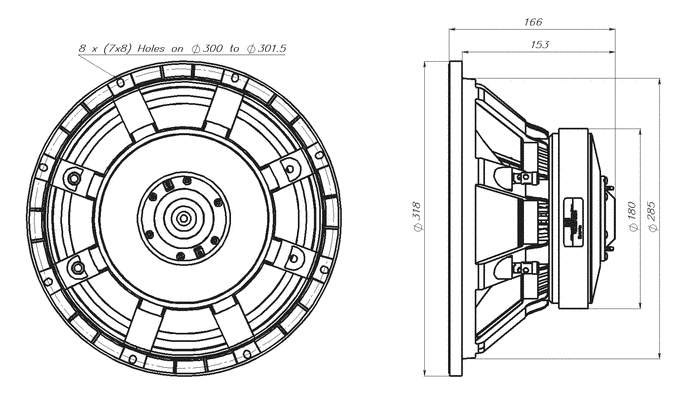

| Overall Diameter: | mm | 318 |
| Mounting Holes Diameter: | mm | 8 x (7 x 8) |
| Bolt Circle Diameter: | mm | 300 |
| Baffle cut-out Diameter: | mm | 285 |
| Overall depth: | mm | 166 |
| Net Weight: | kg | 7.75 |
