| Application | Low-Middle | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 600 |
| Sensitivity (1 W / 1 m): | dB | 100 |
| Frequency response: | Hz | 80 – 2000 |
| Voice Coil Diameter: | mm | 101.6 (4″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 10 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 260 |
Recommended reflex enclosure:
7 L / 90 Hz, -3 dB = 118 Hz, BRD = 60 mm / 90 mm long
15 L / 77 Hz, -3 dB = 84 Hz, BRD = 70 mm / 65 mm long

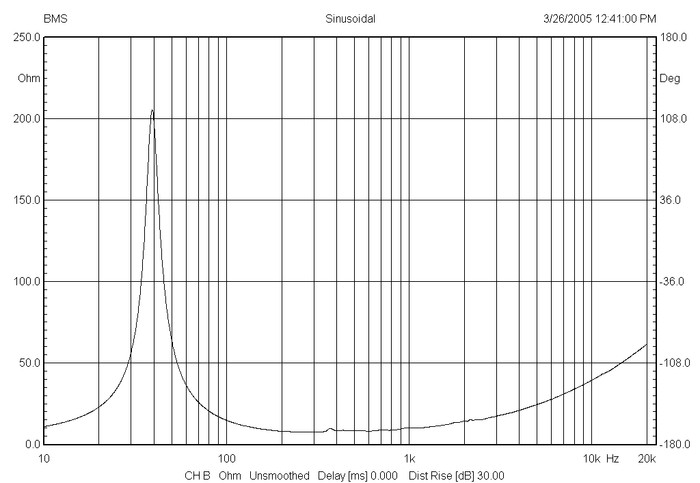

| Resonance Frequency: | Fs | Hz | 40.7 |
| DC Resistance: | Re | Ohm | 5.8 |
| Mechanical Q Factor: | Qms | 5.1 | |
| Electrical Q Factor: | Qes | 0.17 | |
| Total Quality Factor: | Qts | 0.16 | |
| Equivalent Volume: | Vas | L | 89.6 |
| Moving Mass: | Mms | kg | 0.068 |
| Mechanical Complience: | Cms | mm / N | 0.23 |
| BL Factor: | BL | Tesla m | 24.5 |
| Effective Piston Area: | Sd | m² | 0.0531 |
| Max. linear Excursion: | Xmax | mm | +/- 2.5 |
| Voice Coil Inductance: | Le1k | mH | 0.76 |
| Le10k | mH | 0.53 |

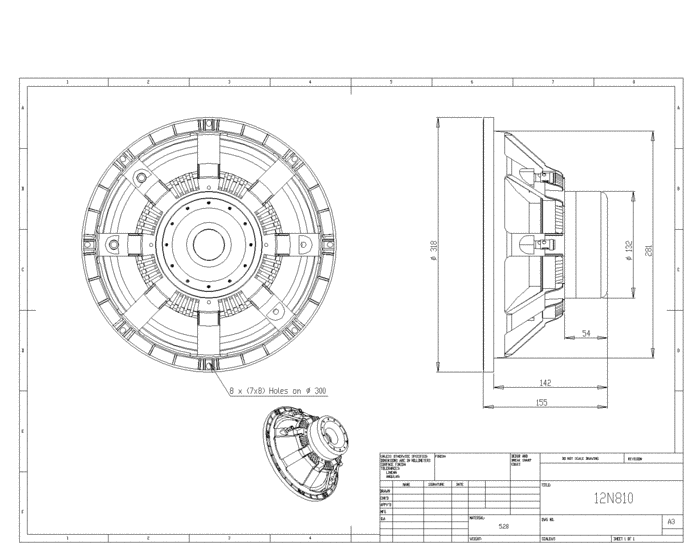

| Overall Diameter: | mm | 318 |
| Mounting Holes Diameter: | mm | 8 x (7 x 8) |
| Bolt Circle Diameter: | mm | 300 |
| Baffle cut-out Diameter: | mm | 284 |
| Overall depth: | mm | 155 |
| Net Weight: | kg | 5.5 |
Frequency Response measured 100 W (28.3 V)
at 1 m in a closed enclosure of 50 litre.
