| Application | Compact 2- or 3-way | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 500 |
| Sensitivity (1 W / 1 m): | dB | 98 |
| Frequency response: | Hz | 40 – 2500 |
| Voice Coil Diameter: | mm | 77 (3″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 19 |
| Magnet Gap Depth: | mm | 10 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 335 |
Recommended reflex enclosure:
70 L / 50 Hz, -3 dB = 54 Hz, BRD = 140 mm / 155 mm long
| Resonance Frequency: | Fs | Hz | 41 |
| DC Resistance: | Re | Ohm | 5.7 |
| Mechanical Q Factor: | Qms | 5 | |
| Electrical Q Factor: | Qes | 0.29 | |
| Total Quality Factor: | Qts | 0.28 | |
| Equivalent Volume: | Vas | L | 154 |
| Moving Mass: | Mms | kg | 0.109 |
| Mechanical Complience: | Cms | mm / N | 0.14 |
| BL Factor: | BL | Tesla m | 23.3 |
| Effective Piston Area: | Sd | m² | 0.0880 |
| Max. linear Excursion: | Xmax | mm | +/- 4.5 |
| Voice Coil Inductance: | Le1k | mH | 0.8 |
| Le10k | mH | 0.52 |

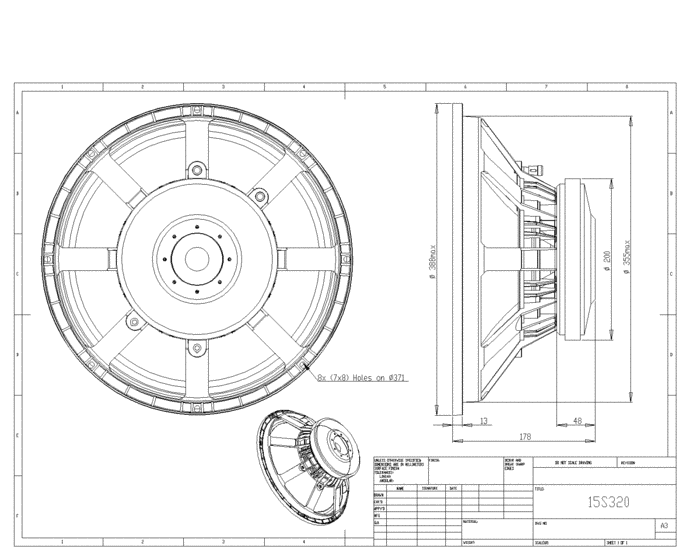

| Overall Diameter: | mm | 388 |
| Mounting Holes Diameter: | mm | 8 x (7 x 8) |
| Bolt Circle Diameter: | mm | 371 |
| Baffle cut-out Diameter: | mm | 358 |
| Overall depth: | mm | 178 |
| Net Weight: | kg | 9 |

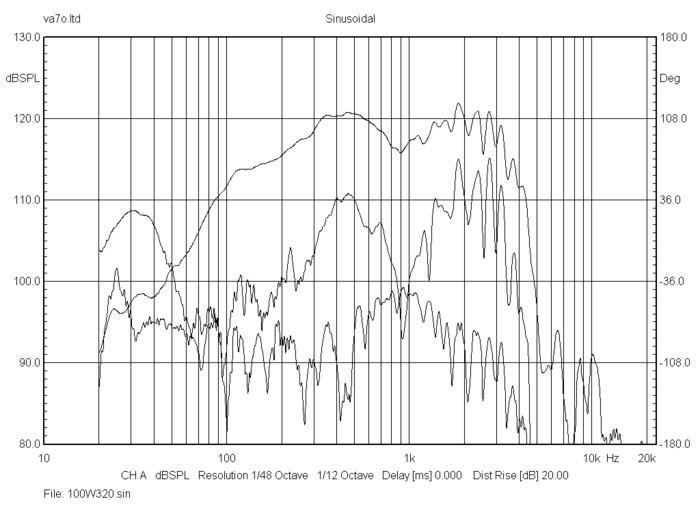

Frequency Response measured 100 W (28.3 V)
at 1 m in a closed enclosure of 100 litre in an anechoic chamber incl. 2nd and 3rd harmonic distortion raised 20 dB.
