| Application | Subwoofer | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 1200 |
| Sensitivity (1 W / 1 m): | dB | 97 |
| Frequency response: | Hz | 35 – 2500 |
| Voice Coil Diameter: | mm | 101.6 (4″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 25 |
| Magnet Gap Depth: | mm | 10 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 335 |
Recommended reflex enclosure:
130 L / 38 Hz, BRD = 210 mm / 335mm long
| Resonance Frequency: | Fs | Hz | 39.8 |
| DC Resistance: | Re | Ohm | 5 |
| Mechanical Q Factor: | Qms | 6.60 | |
| Electrical Q Factor: | Qes | 0.27 | |
| Total Quality Factor: | Qts | 0.26 | |
| Equivalent Volume: | Vas | L | 135 |
| Moving Mass: | Mms | kg | 0.132 |
| Mechanical Complience: | Cms | mm / N | 0.12 |
| BL Factor: | BL | Tesla m | 24.96 |
| Effective Piston Area: | Sd | m² | 0.0897 |
| Max. linear Excursion: | Xmax | mm | +/- 7.5 |
| Voice Coil Inductance: | Le1k | mH | 0.73 |
| Le10k | mH | 0.51 |

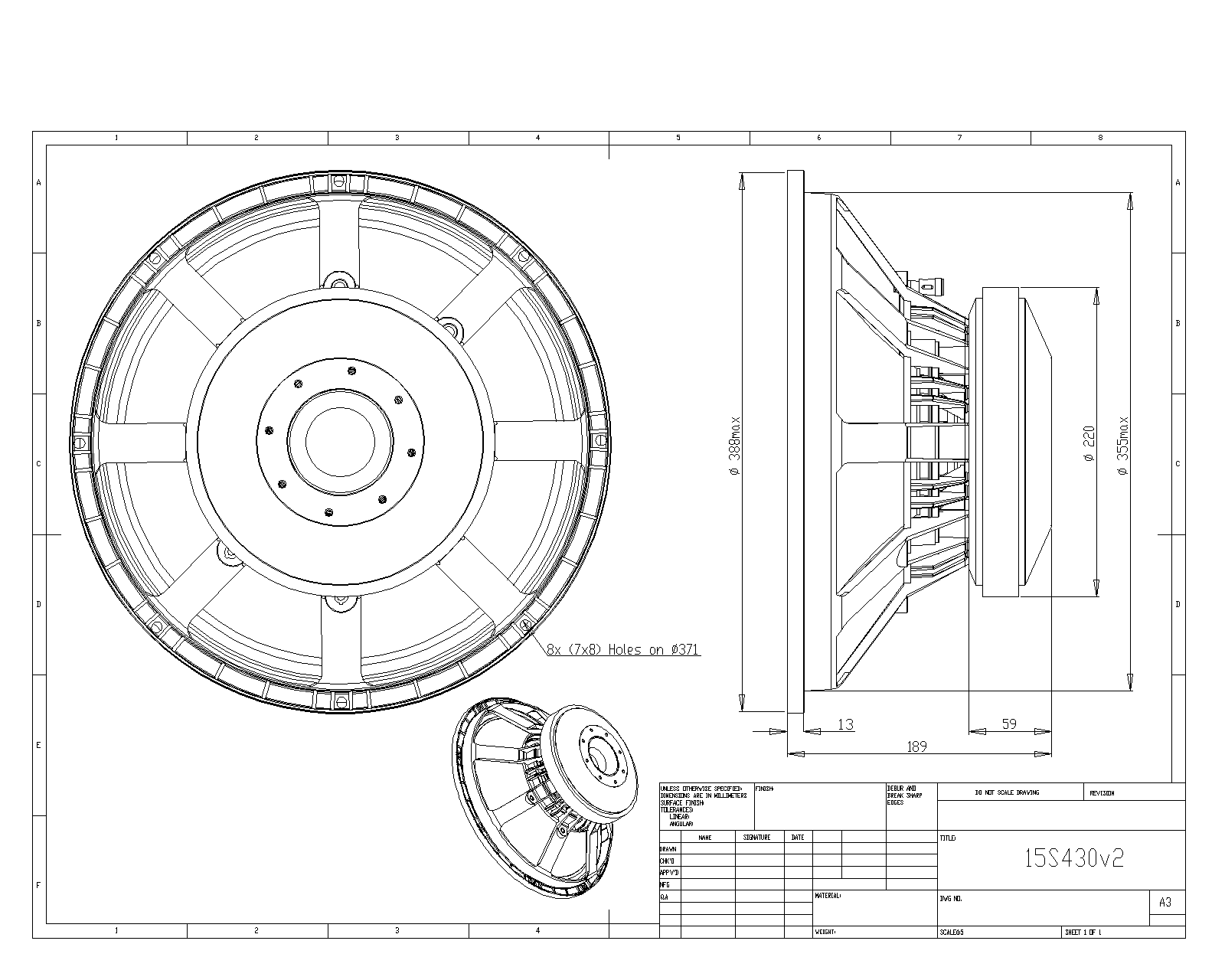

| Overall Diameter: | mm | 388 |
| Mounting Holes Diameter: | mm | 8 x (7 x 8) |
| Bolt Circle Diameter: | mm | 371 |
| Baffle cut-out Diameter: | mm | 358 |
| Overall depth: | mm | 189 |
| Net Weight: | kg | 10.7 |

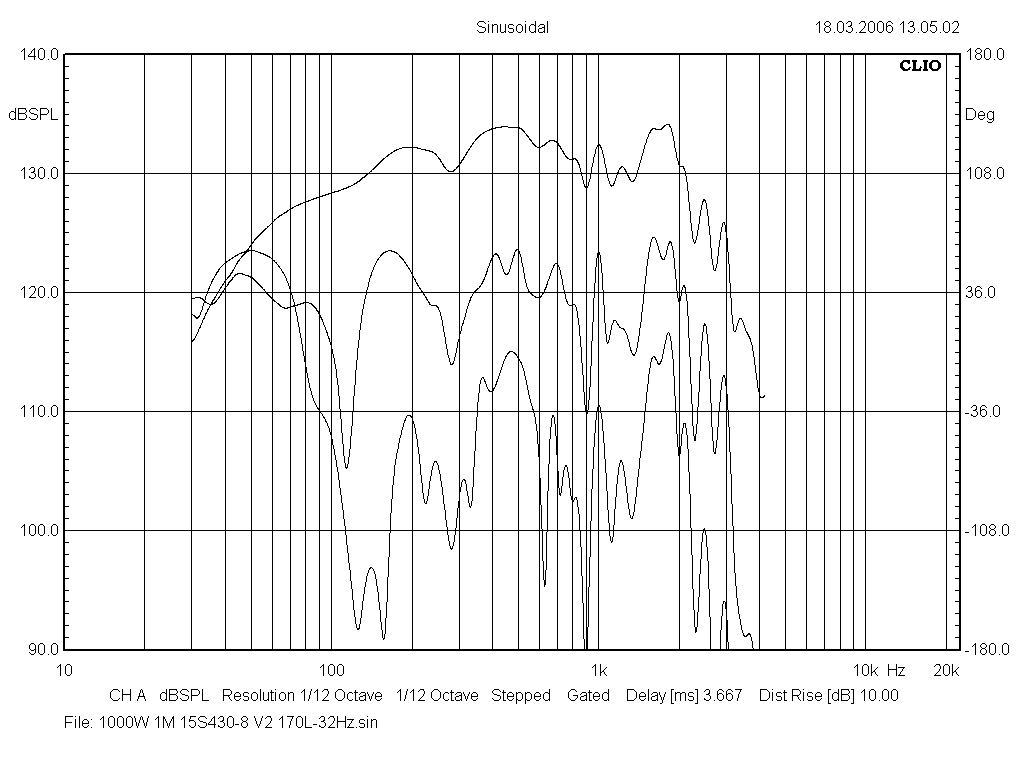

Frequency response measured 1000W (89.4V) at 1m in a closed enclosure of 100 litre incl. 2nd and 3rd harmonic distortion raised 1 0dB.
