| Application | Infra-Subwoofer | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 1500 |
| Sensitivity (1 W / 1 m): | dB | 95 |
| Frequency response: | Hz | 20 – 200 |
| Voice Coil Diameter: | mm | 101.6 (4″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 50 |
| Magnet Gap Depth: | mm | 12 |
| Basket: | Aluminum | |
| Effect. diaphragm diameter D | mm | 393 |
Recommended reflex enclosure:
200 L / 26 Hz, BRD = 200 mm / 540 mm long
Closed enclosure 100 L, -3 dB = 50Hz
| Resonance Frequency: | Fs | Hz | 24.85 |
| DC Resistance: | Re | Ohm | 5.7 |
| Mechanical Q Factor: | Qms | 5.33 | |
| Electrical Q Factor: | Qes | 0.4 | |
| Total Quality Factor: | Qts | 0.37 | |
| Equivalent Volume: | Vas | L | 304 |
| Moving Mass: | Mms | kg | 0.277 |
| Mechanical Complience: | Cms | mm / N | 0.148 |
| BL Factor: | BL | Tesla m | 24.93 |
| Effective Piston Area: | Sd | m² | 0.1213 |
| Max. linear Excursion: | Xmax | mm | +/- 19 |
| Voice Coil Inductance: | Le1k | mH | 0.81 |
| Le10k | mH | 0.5 |
| Overall Diameter: | mm | 458 |
| Mounting Holes Diameter: | mm | 8 x 8.5 |
| Bolt Circle Diameter: | mm | 440 |
| Baffle cut-out Diameter: | mm | 412 |
| Overall depth: | mm | 250 |
| Net Weight: | kg | 10.5 |

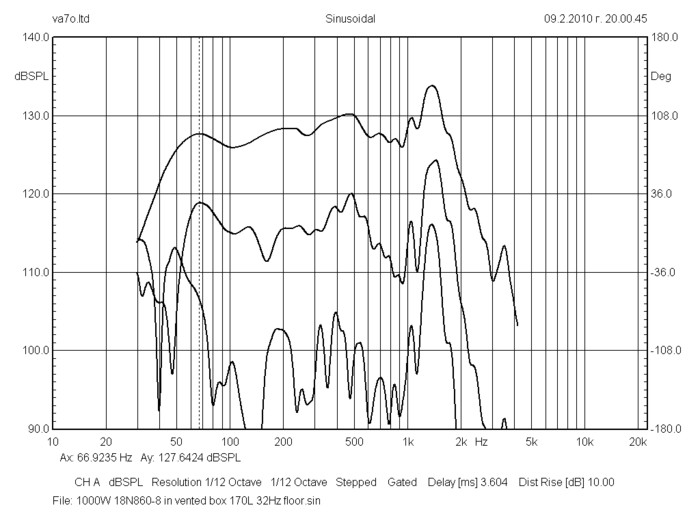

Frequency Response measured 1000 W (89.4 V) at 1 m in a vented enclosure of 170 litre tuned 32 Hz incl. 2nd and 3rd harmonic distortion raised 10 dB.
