| Application | Subwoofer | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 1200 |
| Sensitivity (1 W / 1 m): | dB | 95 |
| Frequency response: | Hz | 20 – 200 |
| Voice Coil Diameter: | mm | 101.6 (4″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 36 |
| Magnet Gap Depth: | mm | 12 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 393 |
| Resonance Frequency: | Fs | Hz | 29 |
| DC Resistance: | Re | Ohm | 5.5 |
| Mechanical Q Factor: | Qms | 7.25 | |
| Electrical Q Factor: | Qes | 0.32 | |
| Total Quality Factor: | Qts | 0.31 | |
| Equivalent Volume: | Vas | L | 281 |
| Moving Mass: | Mms | kg | 0.224 |
| Mechanical Complience: | Cms | mm / N | 0.134 |
| BL Factor: | BL | Tesla m | 26.5 |
| Effective Piston Area: | Sd | m² | 0.1213 |
| Max. linear Excursion: | Xmax | mm | +/- 12 |
| Voice Coil Inductance: | Le1k | mH | 1.1 |
| Le10k | mH | 0.58 |
| Overall Diameter: | mm | 458 |
| Mounting Holes Diameter: | mm | 8 x 8.5 |
| Bolt Circle Diameter: | mm | 440 |
| Baffle cut-out Diameter: | mm | 414 |
| Overall depth: | mm | 233 |
| Net Weight: | kg | 14.5 |

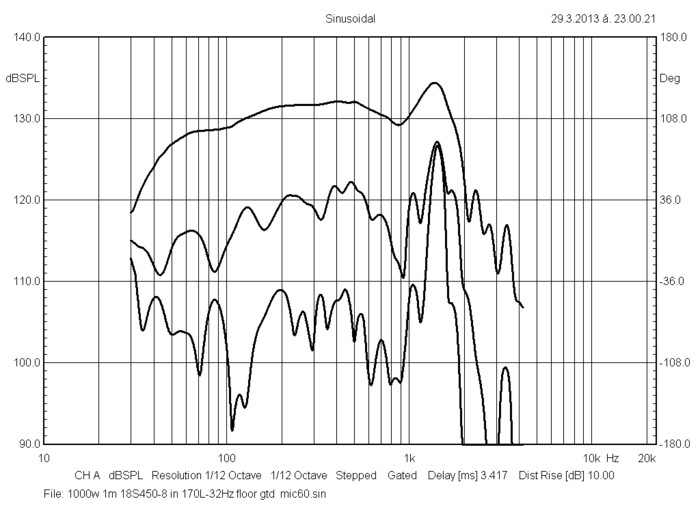

Frequency Response measured 1000 W (89.4 V)
at 1 m in a vented enclosure of 170 liter tuned 32 Hz incl. 2nd and 3rd harmonic distortion raised 10 dB.
