Specification

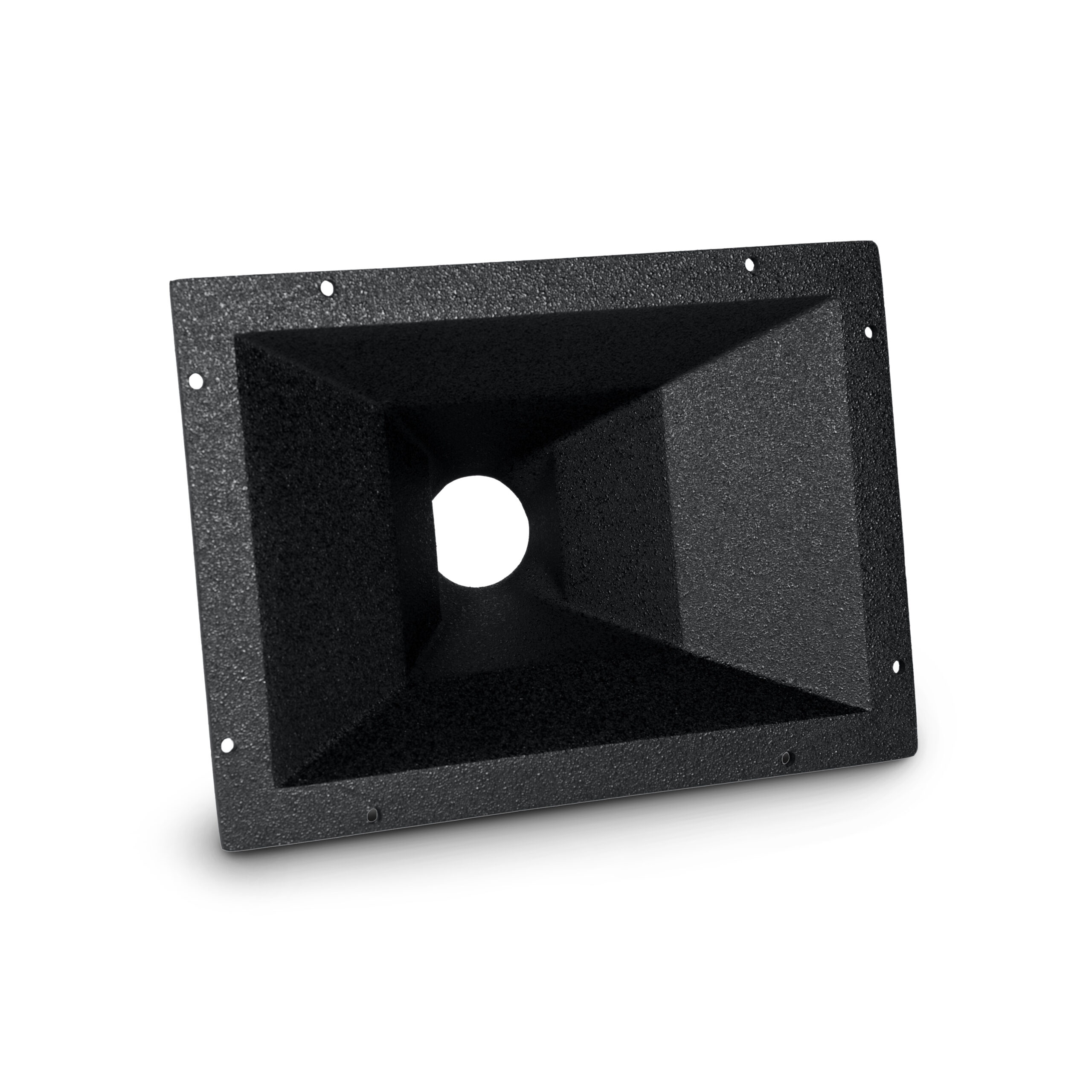

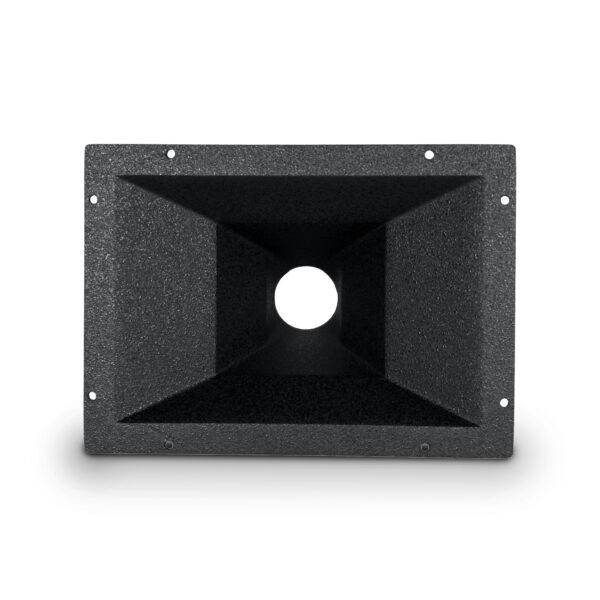

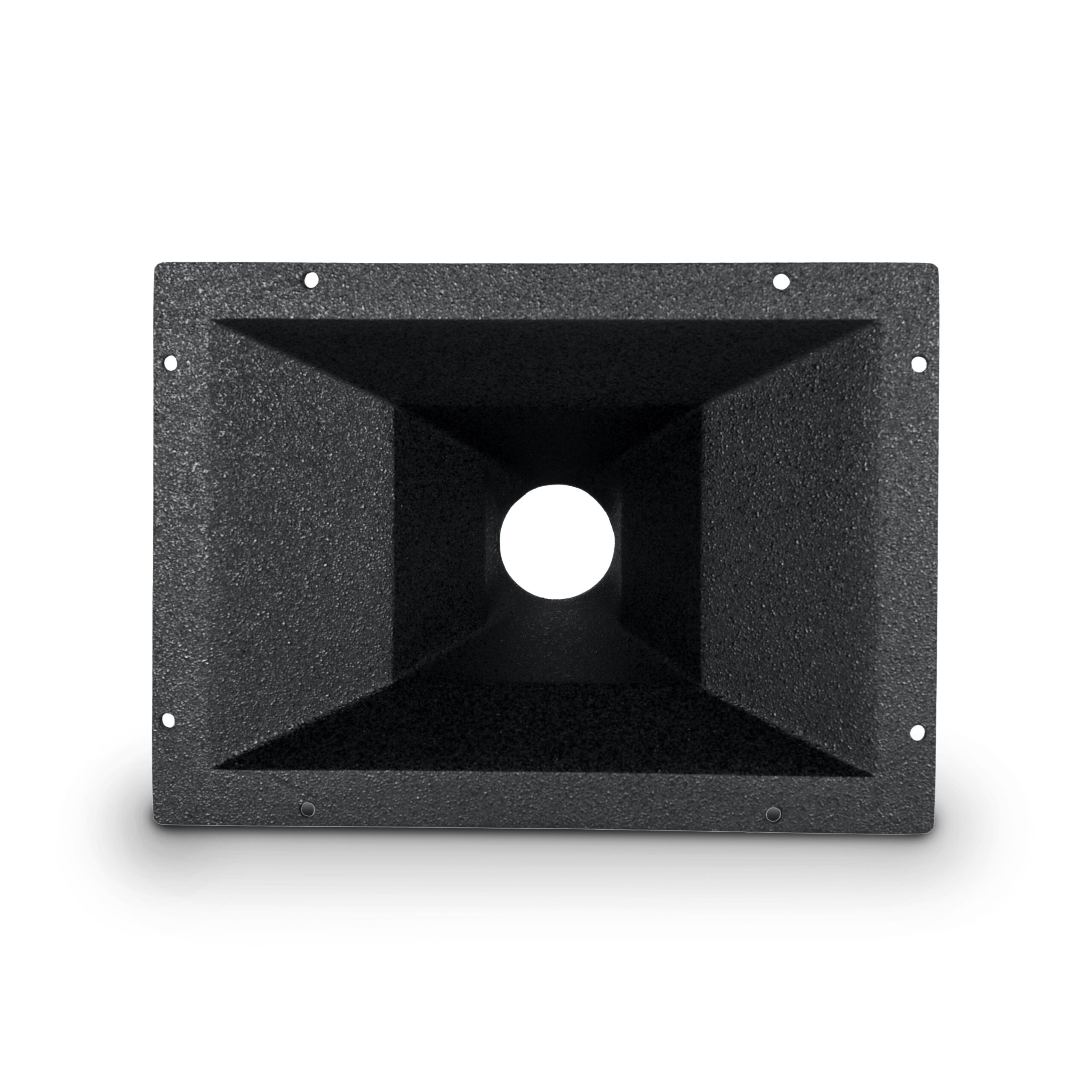

2230 Specification
| Material: | Fiberglass |
| Nominal coverage (H x V): | 90° x 55° |
| Cut off frequency: | 700 Hz |
| Throat diameter: | 2″ (50.8 mm) |
| Overall dimensions: | |
| Width: | 319 mm |
| Height: | 229 mm |
| Depth: | 120 mm |
| Buffle cut out: | |
| Width: | 240 mm |
| Height: | 195 mm |
