Specification

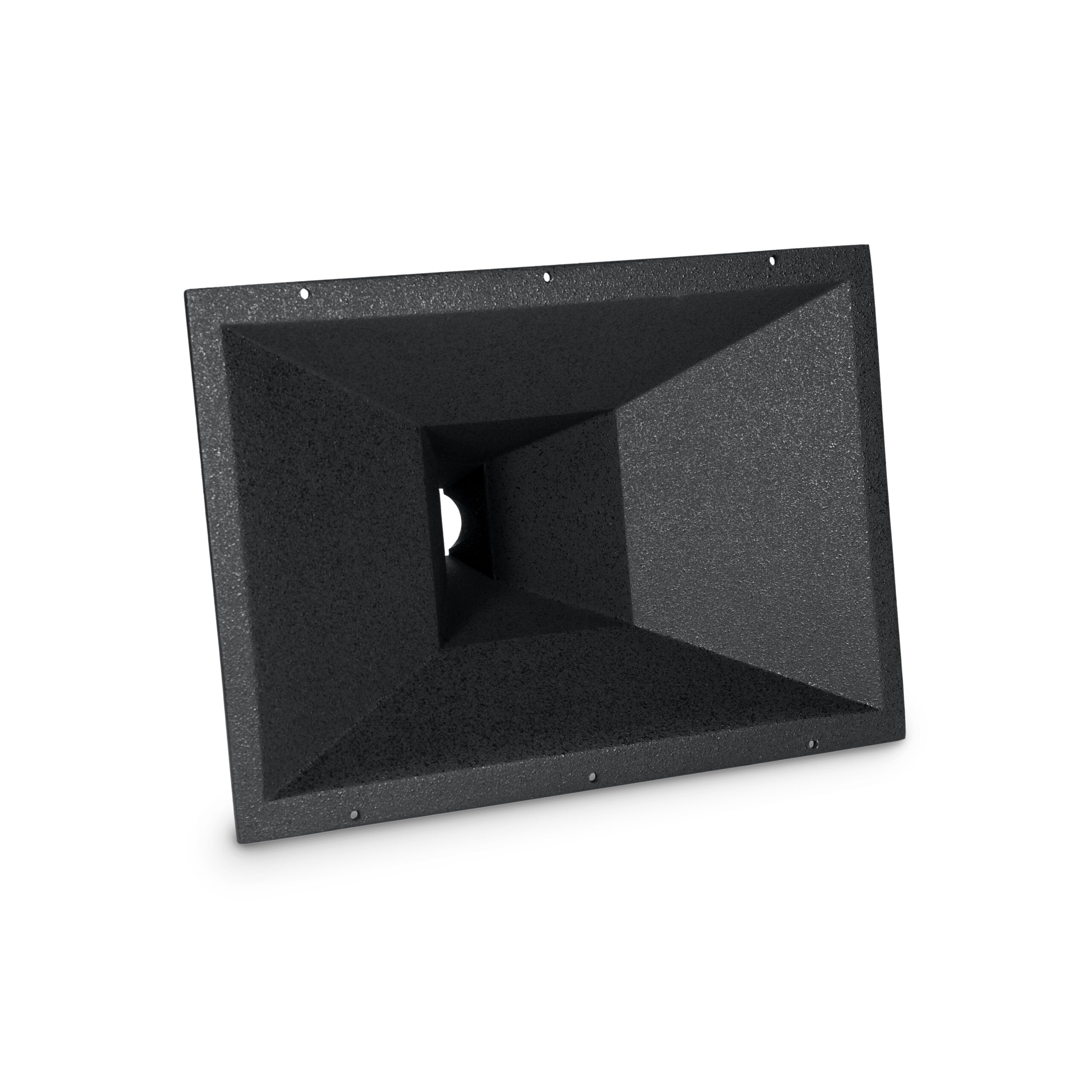

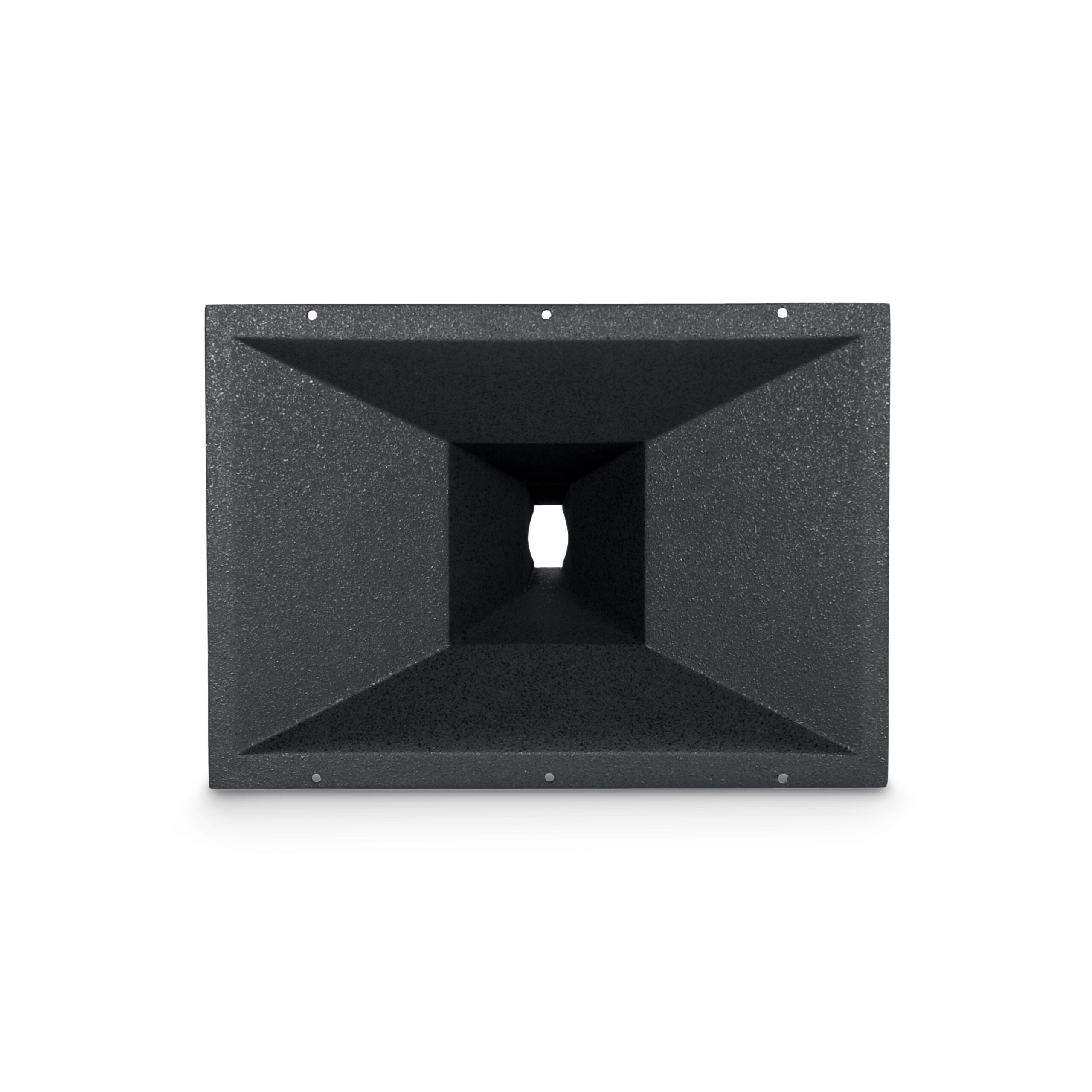

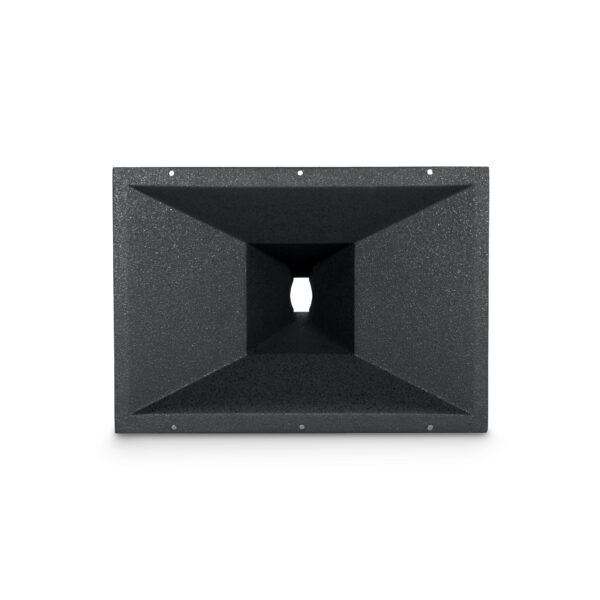

2236 Specification
| Material: | Fiberglass |
| Nominal coverage (H x V): | 60° x 40° |
| Cut off frequency: | 400 Hz |
| Throat diameter: | 2″ (50.8 mm) |
| Overall dimensions: | |
| Width: | 498 mm |
| Height: | 348 mm |
| Depth: | 265 mm |
| Buffle cut out: | |
| Width: | 450 mm |
| Height: | 305 mm |
