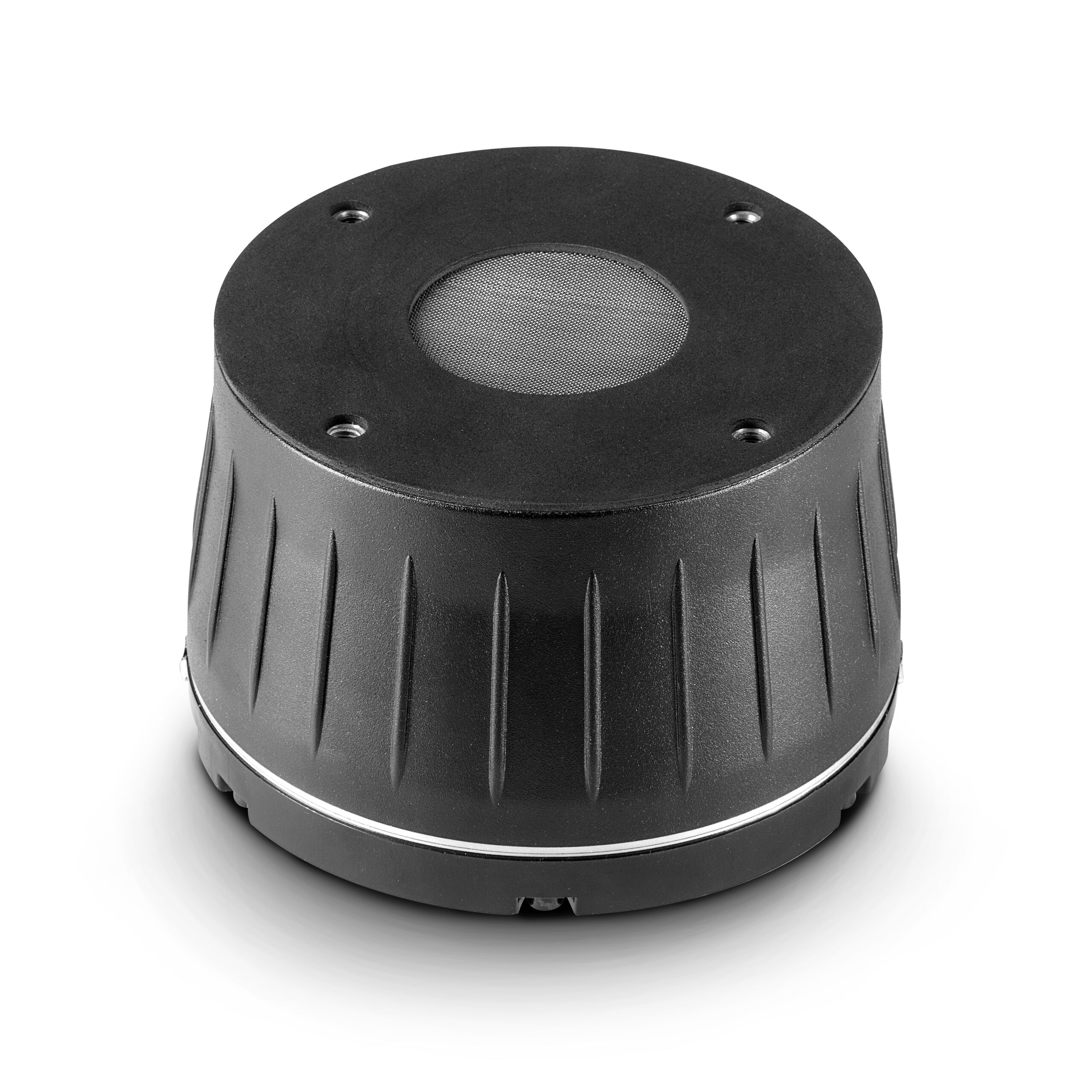

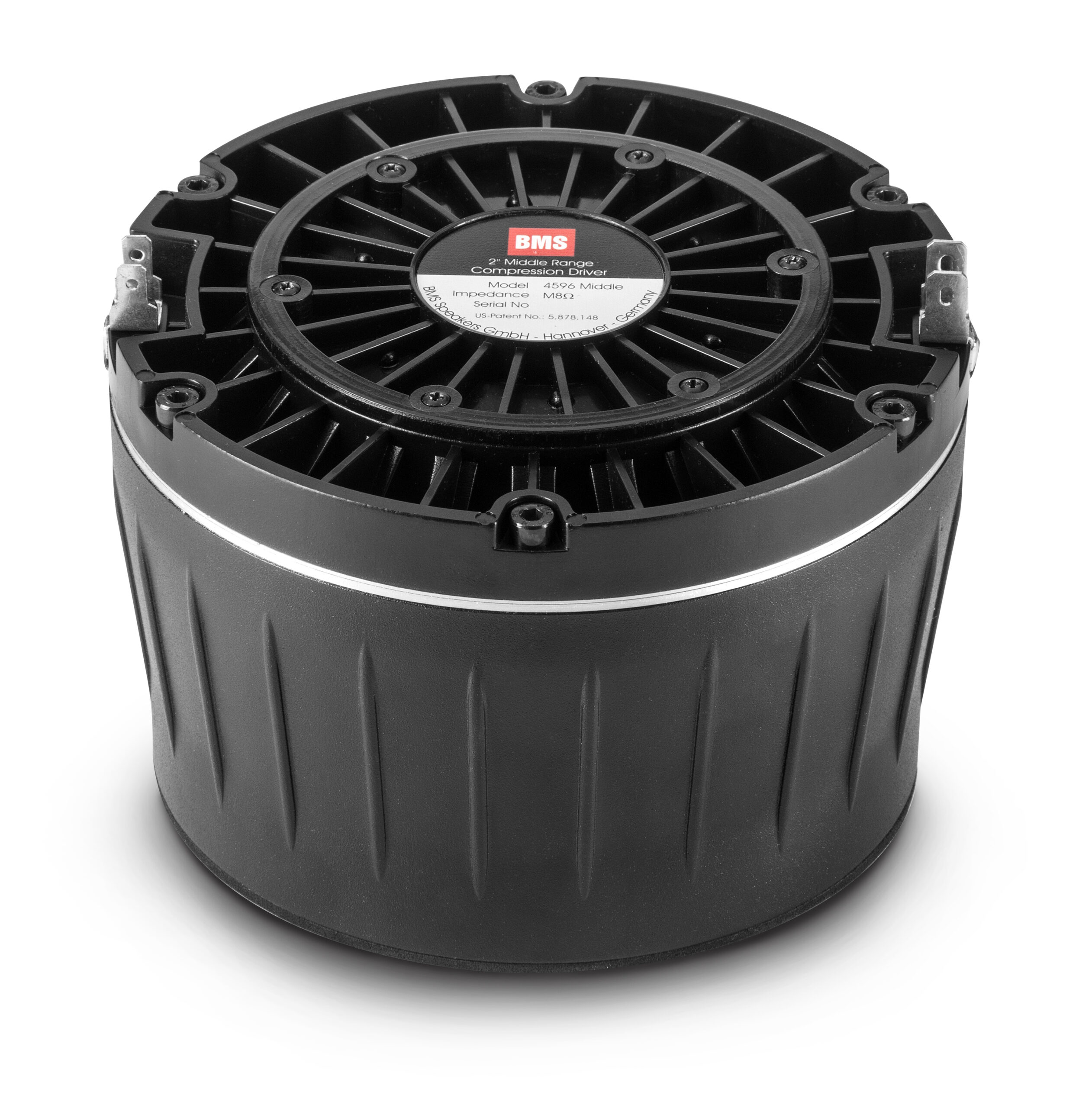

2" Neodymium midrange compression driver

4596ND

2" Neodymium midrange compression driver

3.5″ sandwich in- and outside voice coil
Unique patented design
Large annular diaphragm
High efficiency of 35%
High power handling of 150W (AES)
Frequency range 200Hz to 9kHz, optimized for
human voice
Specially designed for high output applications
Ultra low distortion
Neodymium magnet assembly
Ultra light weight and small size
8 or 16 Ohms

The 4596ND is the BMS latest generation 2” mid-range compression driver providing extremely high acoustical output. The driver incorporates a 3,5” voice coil and a large annular ring diaphragm and has been optimized for middle range applications requiring high SPL. Overall improvements to previous models include optimized frequency response as well as increased peak power and reliability.

Specification

4596ND Specification

Throat diameter:	2″ (50.8 mm)
Nominal impendance:	8 or 16 Ohm
Power capacity (AES):	150 W
Peak Power:	1500 W
max. SPL (cont.):	136 dB at 150 W

Sensitivity
1 W / 1 m:	123 dB on 40°x20° waveguide
Frequency Range:	200 – 9000 Hz
Recommended Crossover:	300 Hz
Voice Coil Diameter:	3.5″ (90 mm)
Magnet Material:	Neodymium
Flux Density (Tesla):	1.95
Efficiency:	35 %
Voice Coil Material:	Copper
Voice Coil Former:	Kapton
Diaphragm Material:	Polyester
