Specification

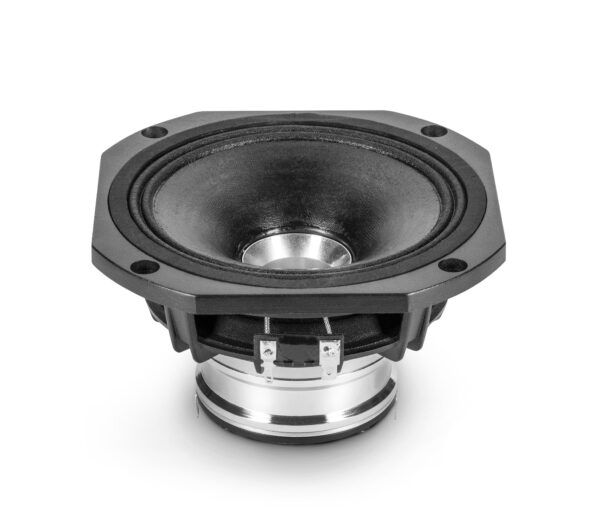

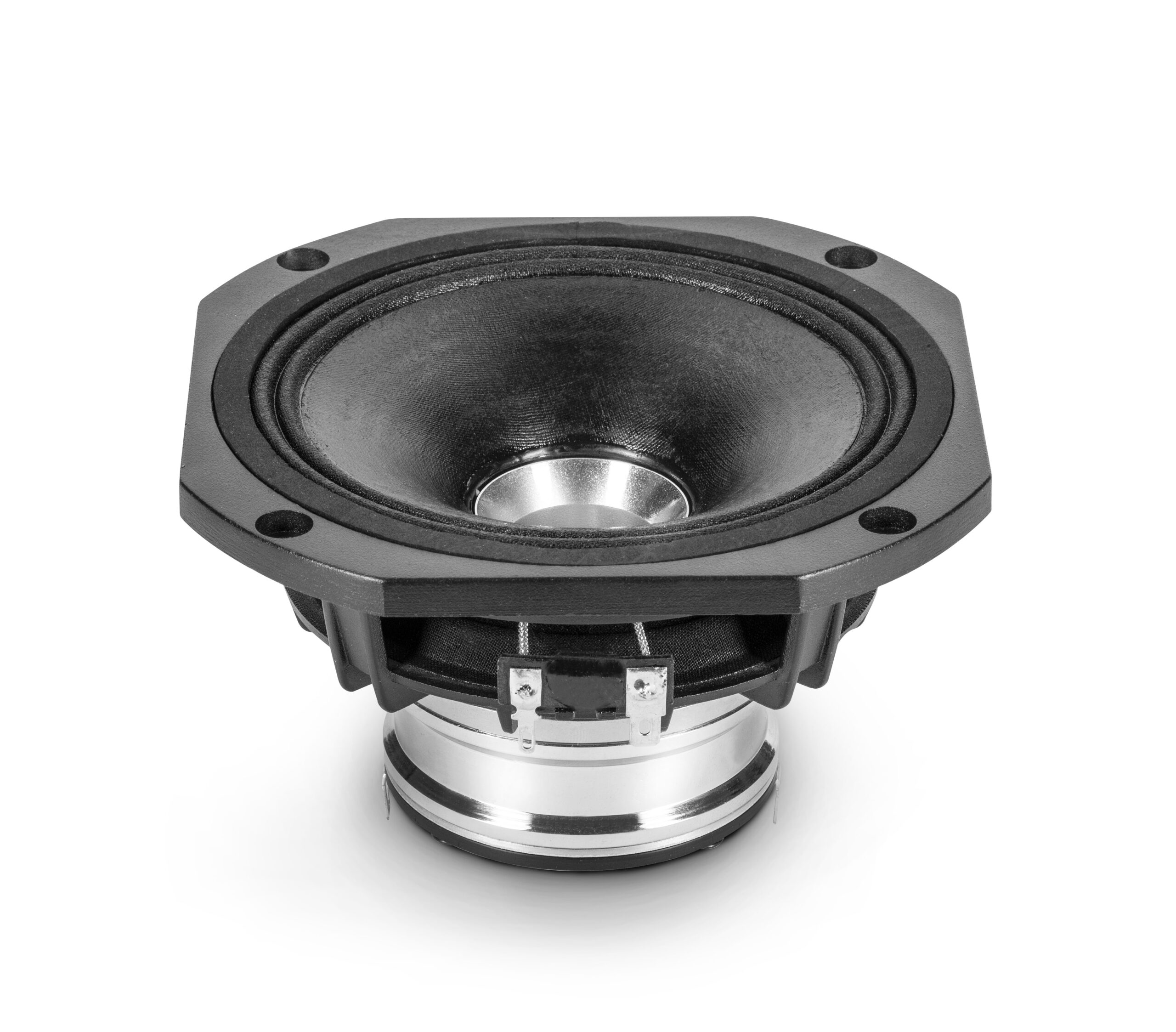

5CN140 Specification
| Application | 2-way Transducer | |

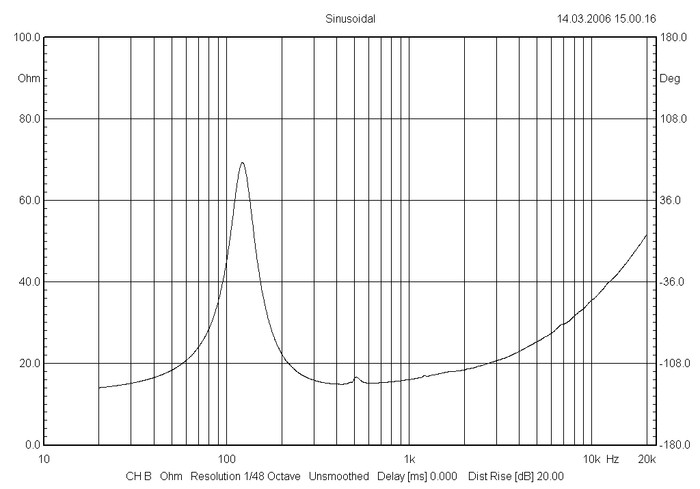

| Nominal Impendance: | Ohm | 16 |
| Power handling AES noise: | W | 120 |
| Sensitivity (1 W / 1 m): | dB | 90 |

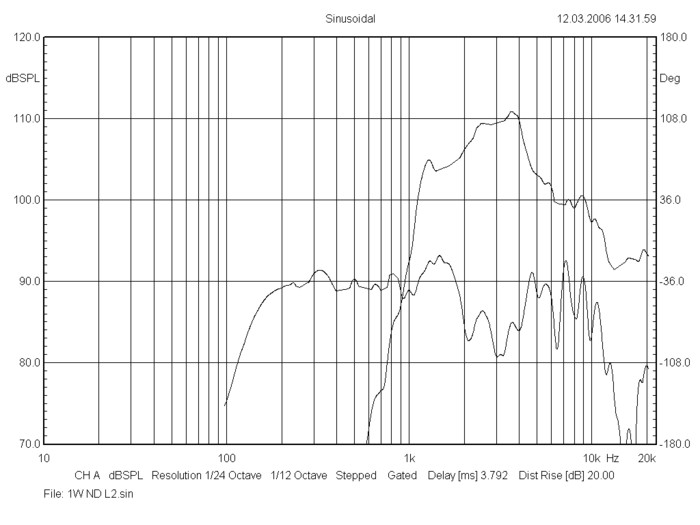

| Frequency response: | Hz | 80 – 4000 |
| Voice Coil Diameter: | mm | 38 (1.5″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 12 |
| Magnet Gap Depth: | mm | 5 |
| Basket: | Cast Aluminum | |
| Voice Coil Inductance Le | mH | 0.45 (16 Ohm) |
Recommended reflex enclosure:
1.9 L / 104 Hz, BRD = 30 mm / 77 mm long
3.8 L / 90 Hz, BRD = 40 mm / 86 mm long
Closed enclosure 1 – 4 Litre
