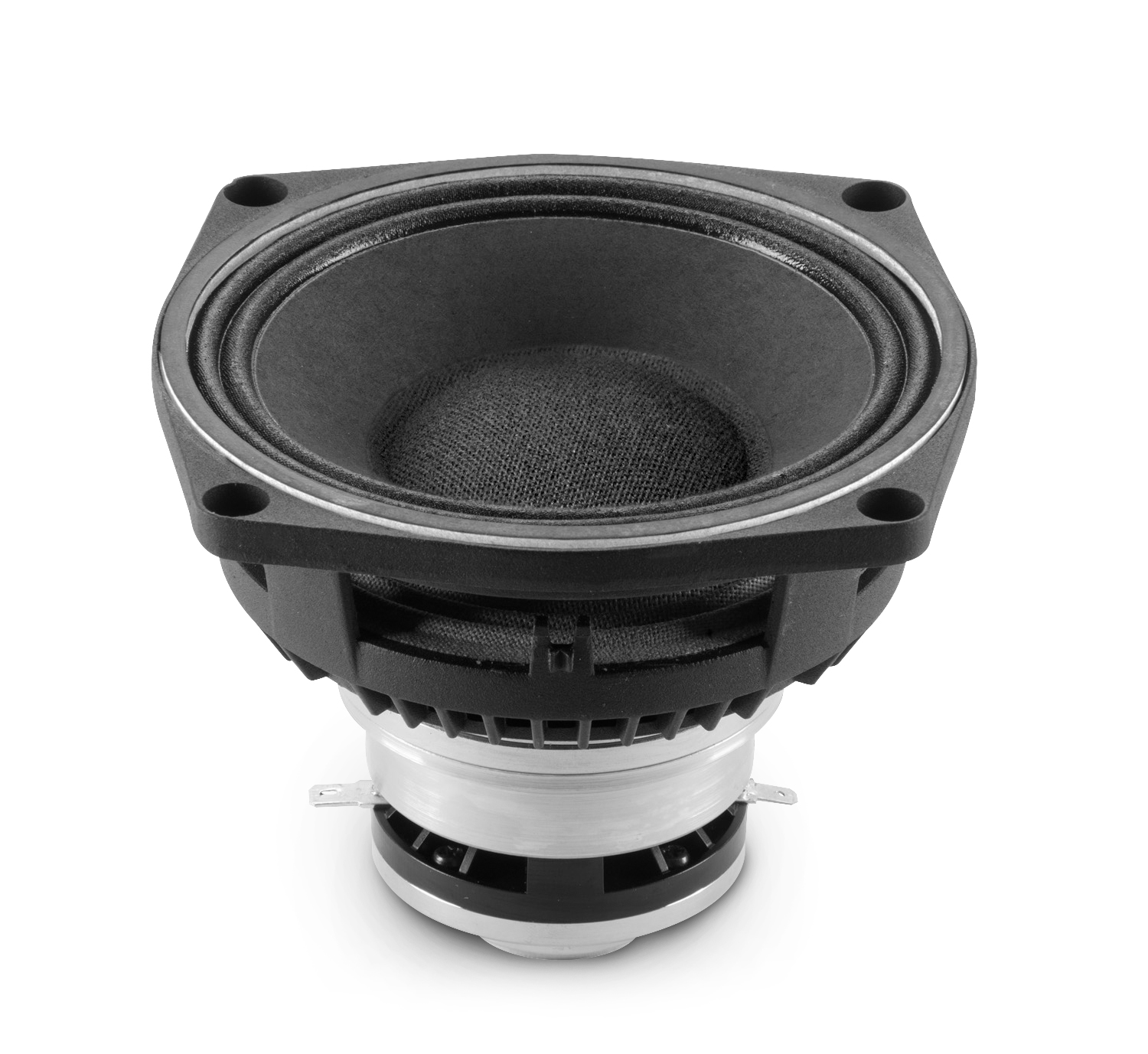

| Application | 2-way Transducer | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 130 |
| Sensitivity (1 W / 1 m): | dB | 90 |
| Frequency response: | Hz | 80 – 20000 |
| Voice Coil Diameter: | mm | 38 (1.5″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 5 |
| Basket: | Cast Aluminum | |
| Effect. Diaphragm Diameter: | mm | 98 |
Recommended reflex enclosure:
1.9 L / 104 Hz, BRD = 30 mm / 77 mm long
3.8 L / 90 Hz, BRD = 40 mm
| Resonance Frequency: | Fs | Hz | 100 |
| DC Resistance: | Re | Ohm | 6.85 |
| Mechanical Q Factor: | Qms | 3.1 | |
| Electrical Q Factor: | Qes | 0.41 | |
| Total Quality Factor: | Qts | 0.36 | |
| Equivalent Volume: | Vas | L | 2.1 |
| Moving Mass: | Mms | kg | 0.009 |
| Mechanical Complience: | Cms | mm / N | 0.27 |
| BL Factor: | BL | Tesla m | 10 |
| Effective Piston Area: | Sd | m² | 0.0075 |
| Max. linear Excursion: | Xmax | mm | +/-5 |
| Voice Coil Inductance: | Le1k | mH | 0.39 |
| Le10k | mH | 0.3 |
| Power Handling AES: | W | 25 |
| Peak Power: | W | 200 |
| Sensitivity (1 W / 1 m): | dB | 110 |
| Frequency Range: | Hz | 1200 – 20000 |
| Recommended Crossover: | Hz | 1700 |
| Voice Coil Diameter: | mm | 25.4 (1″) |
| Magnet Material: | Neodymium | |
| Flux Density | T | 1.6 |
| Voice Coil Material: | Copper Clad Aluminium | |
| (2 Layers in- and outsde the VC) | ||
| Voice Coil Former: | Kapton TM | |
| Diaphragm Material: | Polyester |

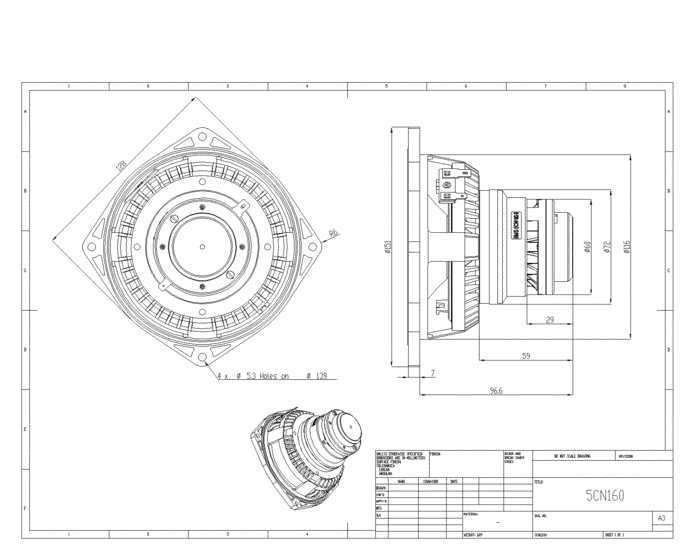

| Overall Diameter: | mm | 128 x 128 |
| Mounting Holes Diameter: | mm | 4 x 5.3 |
| Bolt Circle Diameter: | mm | 139 |
| Baffle cut-out Diameter: | mm | 117 |
| Overall depth: | mm | 104 |
| Net Weight: | kg | 1.14 |
Frequency Response measured 1 W (2.83 V)
at 1 m in a closed enclosure of 11 litre.
