| Application | Low-Middle | |
| Nominal Impendance: | Ohm | 16 |
| Power handling AES noise: | W | 130 |
| Sensitivity (1 W / 1 m): | dB | 91 |
| Frequency response: | Hz | 80 – 4000 |
| Voice Coil Diameter: | mm | 38 (1.5″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 5 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 105 |
Recommended reflex enclosure:
3.5 L / 91.5 Hz, BRD = 40 mm / 93 mm long
Closed enclosure 1 / 4 Litre
| Resonance Frequency: | Fs | Hz | 100.6 |
| DC Resistance: | Re | Ohm | 11.65 |
| Mechanical Q Factor: | Qms | 4.17 | |
| Electrical Q Factor: | Qes | 0.49 | |
| Total Quality Factor: | Qts | 0.44 | |
| Equivalent Volume: | Vas | L | 2.63 |
| Moving Mass: | Mms | kg | 0.0096 |
| Mechanical Complience: | Cms | mm / N | 0.26 |
| BL Factor: | BL | Tesla m | 12 |
| Effective Piston Area: | Sd | m² | 0.0085 |
| Max. linear Excursion: | Xmax | mm | +/- 5 |
| Voice Coil Inductance: | Le1k | mH | 0.51 (4 Ohm) |
| Le10k | mH | 0.36 (4 Ohm) |

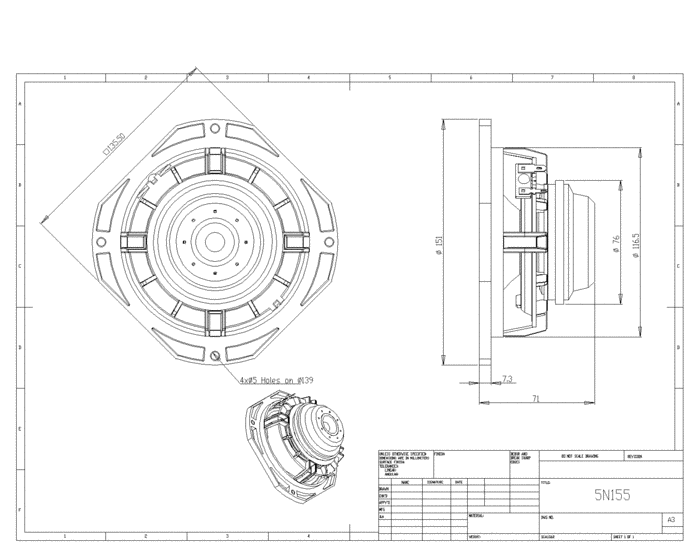

| Overall Diameter: | mm | 135 x 135 |
| Mounting Holes Diameter: | mm | 4 x 5.3 |
| Bolt Circle Diameter: | mm | 139 |
| Baffle cut-out Diameter: | mm | 117 |
| Overall depth: | mm | 71 |
| Net Weight: | kg | 0.85 |
Frequency Response measured 100 W (28.3 V)
at 1 m in a closed enclosure of 10 litre incl. 2nd and 3rd harmonic distortion raised 10 dB.
