| Application | 2-way Transducer | |
| Nominal Impendance: | Ohm | 16 |
| Power handling AES noise: | W | 130 |
| Sensitivity (1 W / 1 m): | dB | 93 |
| Frequency response: | Hz | 80 – 20000 |
| Voice Coil Diameter: | mm | 38 (1.5″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 5 |
| Basket: | Cast Aluminum | |
| Effect. Diaphragm Diameter D | mm | 129 |
Recommended reflex enclosure:
6 L / 90 Hz, BRD = 50 mm / 79 mm long
9 L / 80 Hz, BRD = 60 mm / 96 mm long
| Resonance Frequency: | Fs | Hz | 88.3 |
| DC Resistance: | Re | Ohm | 11.9 |
| Mechanical Q Factor: | Qms | 3.9 | |
| Electrical Q Factor: | Qes | 0.53 | |
| Total Quality Factor: | Qts | 0.46 | |
| Equivalent Volume: | Vas | L | 7.6 |
| Moving Mass: | Mms | kg | 0.01 |
| Mechanical Complience: | Cms | mm / N | 0.31 |
| BL Factor: | BL | Tesla m | 11.36 |
| Effective Piston Area: | Sd | m² | 0.0132 |
| Max. linear Excursion: | Xmax | mm | +/- 5 |
| Voice Coil Inductance: | Le1k | mH | 0.68 |
| Le10k | mH | 0.47 |
| Power Handling AES: | W | 25 |
| Peak Power: | W | 200 |
| Sensitivity (1 W / 1 m): | dB | 110 |
| Frequency Range: | Hz | 1200 – 20000 |
| Recommended Crossover: | Hz | >1500 |
| Voice Coil Diameter: | mm | 25.4 (1″) |
| Magnet Material: | Neodymium | |
| Fluchs Density | T | 1.6 |
| Voice Coil Material: | Copper Clad Aluminium | |
| (2 Layers in- and outside of the VC) | ||
| Voice Coil Former: | Kapton TM | |
| Diaphragm Material: | Polyester |

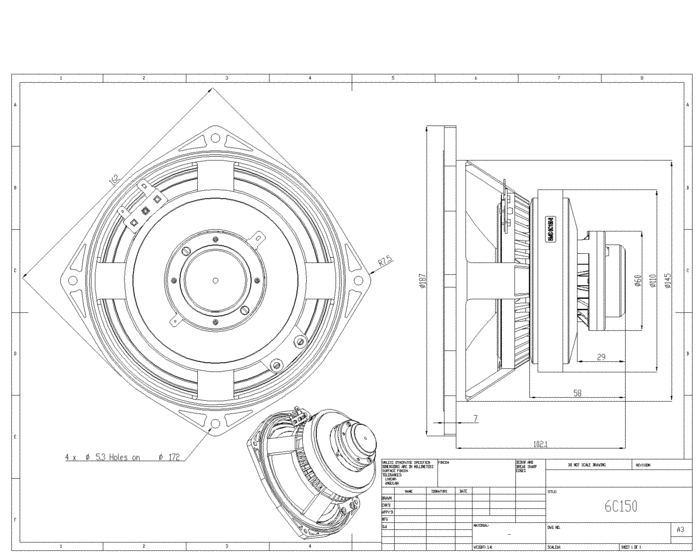

| Overall Diameter: | mm | 162 x 162 |
| Mounting Holes Diameter: | mm | 4 x 5.3 |
| Bolt Circle Diameter: | mm | 172 |
| Baffle cut-out Diameter: | mm | 146 |
| Overall depth: | mm | 109 |
| Net Weight: | kg | 1.95 |
Frequency Response measured 1 W (2.83 V)
at 1 m in a closed box icl. 2nd and 3rd harmonic distortion raised 10 dB.
