| Application | Low-Middle | |
| Nominal Impendance: | Ohm | 16 |
| Power handling AES noise: | W | 130 |
| Sensitivity (1 W / 1 m): | dB | 93 |
| Frequency response: | Hz | 80 – 3500 |
| Voice Coil Diameter: | mm | 38 (1.5″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 5 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 135 |
| Resonance Frequency: | Fs | Hz | 89 |

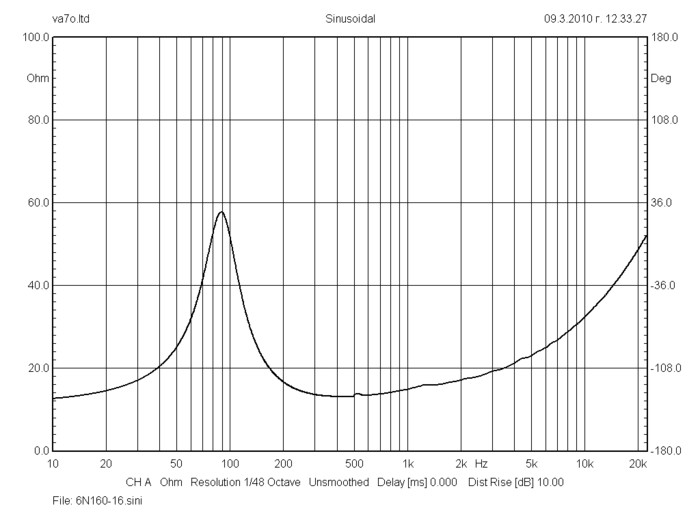

| DC Resistance: | Re | Ohm | 11.4 |
| Mechanical Q Factor: | Qms | 2.4 | |
| Electrical Q Factor: | Qes | 0.58 | |
| Total Quality Factor: | Qts | 0.47 | |
| Equivalent Volume: | Vas | L | 7.7 |
| Moving Mass: | Mms | kg | 0.0117 |
| Mechanical Complience: | Cms | mm / N | 0.27 |
| BL Factor: | BL | Tesla m | 11.3 |
| Effective Piston Area: | Sd | m² | 0.0143 |
| Max. linear Excursion: | Xmax | mm | +/- 5 |
| Voice Coil Inductance: | Le1k | mH | 0.53 |
| Le10k | mH | 0.37 |

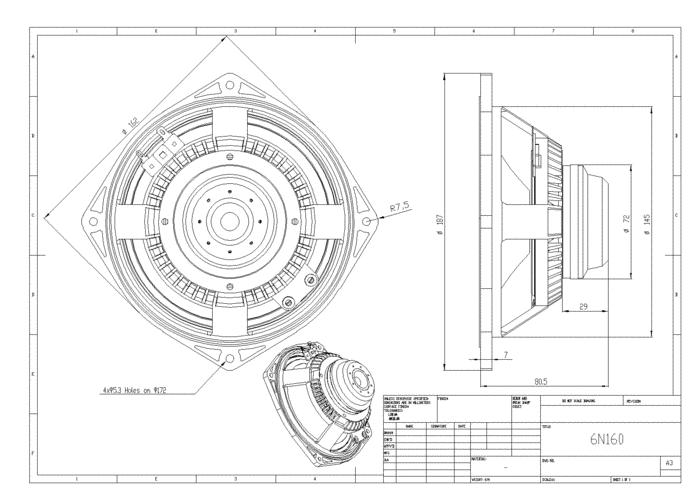

| Overall Diameter: | mm | 162 |
| Mounting Holes Diameter: | mm | 4 x 5.3 |
| Bolt Circle Diameter: | mm | 172 |
| Baffle cut-out Diameter: | mm | 146 |
| Overall depth: | mm | 80.5 |
| Net Weight: | kg | 0.905 |
Frequency Response measured 100 W (28.3 V)
at 1 m in a closed enclosure of 25 liter incl. 2nd and 3rd harmonic distortion raised 10 dB.
