| Application | Low-Middle | |
| Nominal Impendance: | Ohm | 8 |
| Power handling AES noise: | W | 200 |
| Sensitivity (1 W / 1 m): | dB | 96 |
| Frequency response: | Hz | 80 – 3000 |
| Voice Coil Diameter: | mm | 52 (2″) |
| Voice Coil Material: | Cu | |
| Voice Coil Winding Depth: | mm | 15 |
| Magnet Gap Depth: | mm | 7 |
| Basket: | Cast Aluminum | |
| Effect. diaphragm diameter D | mm | 168 |
Recommended reflex enclosure:
4 L / 108 Hz, BRD = 60 mm / 127 mm long
7 L / 82 Hz, BRD = 60 mm / 126 mm long
10L / 70 Hz, BRD = 60 mm / 111 mm long
| Resonance Frequency: | Fs | Hz | 87.7 |
| DC Resistance: | Re | Ohm | 5.4 |
| Mechanical Q Factor: | Qms | 4.34 | |
| Electrical Q Factor: | Qes | 0.32 | |
| Total Quality Factor: | Qts | 0.30 | |
| Equivalent Volume: | Vas | L | 11.04 |
| Moving Mass: | Mms | kg | 0.0206 |
| Mechanical Complience: | Cms | mm / N | 0.16 |
| BL Factor: | BL | Tesla m | 13.80 |
| Effective Piston Area: | Sd | m² | 0.0222 |
| Max. linear Excursion: | Xmax | mm | +/- 4 |
| Voice Coil Inductance: | Le1k | mH | 0.32 (4 Ohm) |
| Le10k | mH | 0.26 (4 Ohm) |
| Overall Diameter: | mm | 205 |
| Mounting Holes Diameter: | mm | 4 x (6 x 6.5) |
| Bolt Circle Diameter: | mm | 195-197 |
| Baffle cut-out Diameter: | mm | 182 |
| Overall depth: | mm | 102 |
| Net Weight: | kg | 1.98 |

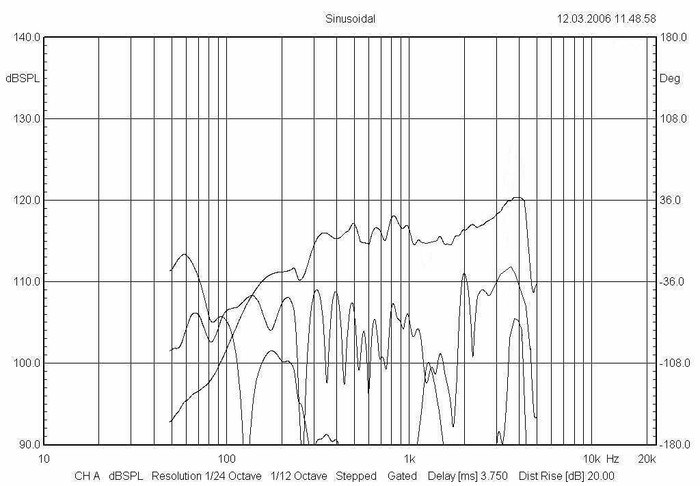

Frequency Response measured 100 W (28.3 V)
at 1 m in a closed enclosure of 10 litre incl. 2nd and 3rd harmonic distortion raised 20 dB.
